Quick hitch

32mm pin

32mm pin

Simple, safe and strong.

This Auto Hitch saves you time and effort. It gives easy coupling from your tractor cab when using a variety of towed implements.

The SAM Auto Hitch sits upright unsupported. This means manual lifting is not needed.

It gives quick alignment and when it's coupled to a three point linkage, you have a great view of the pin from your cab. This means a simple, easy pick-up each time.

It has been constructed with safety and strength in mind. The construction is fully welded. SAM Auto Hitches are suitable for a whole range of towed machinery.

Tow pins come in a couple of sizes and are easy to change out if needed.

The larger pin is suitable for trailed implements up to 15 tonnes. The smaller pin is suitable for up to 12 tonnes.

A tow ball pin is also available.

Smart features

  • Excellent view
    Excellent view

    Superb view of your tow-pin for safe coupling and uncoupling.

  • Fully-welded
    Fully-welded

    The construction is full-welded which means it has been engineered with safety and strength.

  • Self-supporting stand
    Self-supporting stand

    The design stands unsupported (when you are not using it) - this means quick alignment and no unnecessary lifting.

  • Safety latch
    Safety latch

    The safety latch fits across the tow-eye to lock in place.

  • CAT-2
    CAT-2

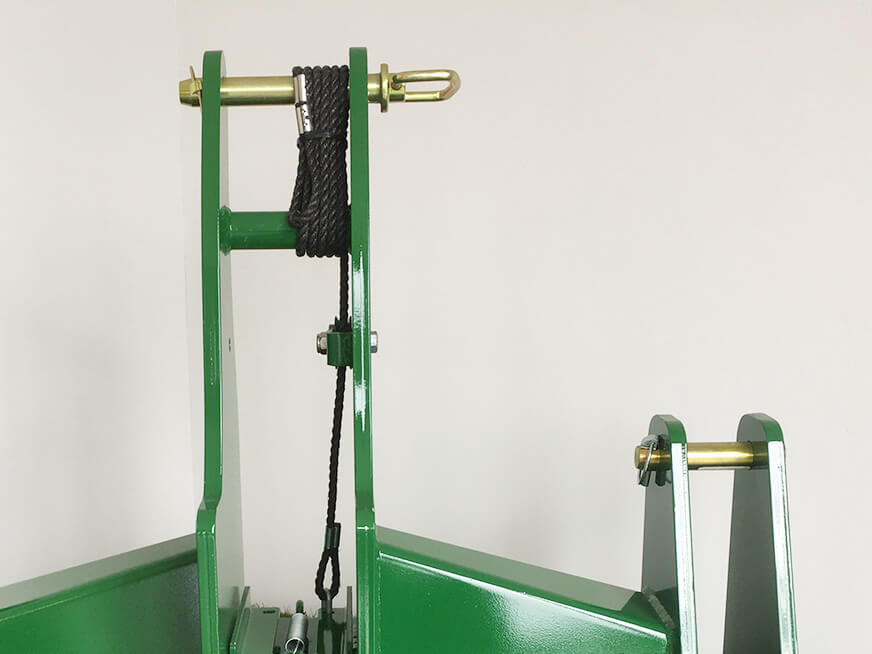

    CAT-2 lift-arm and top pins (all are easily replaceable).

  • Tow ball option
    Tow ball option

    Tow ball option is also available if you need it.

  • Different pin sizes
    Different pin sizes

    There are two tow pin sizes. The strongest and most common is the 40 millimetre to work with a 50 millimetre eye. The smaller 32 millimetre pin is made to work with a 37 millimetre eye.

  • Industry leading coating protection system

    Every SAM has an advanced new paint procedure for the long-term. This application has been chosen for its hard-wearing toughness. Firstly a blast then a thermal-arc spray followed by the SAM coating difference. This industry leading coating protection system is mega tough stuff!

Specifications

  • Height 730 mm
  • Width 400 mm
  • Length 940 mm
  • Weight 95 kg
  • Pin size 32 mm

Need help fast?

Contact your local dealer or call SAM for technical help and support.

Quality guaranteed

SAM makes quality machines and stands by them. Every implement goes through extensive quality and accuracy testing. All come with a comprehensive warranty.
