Side-feed

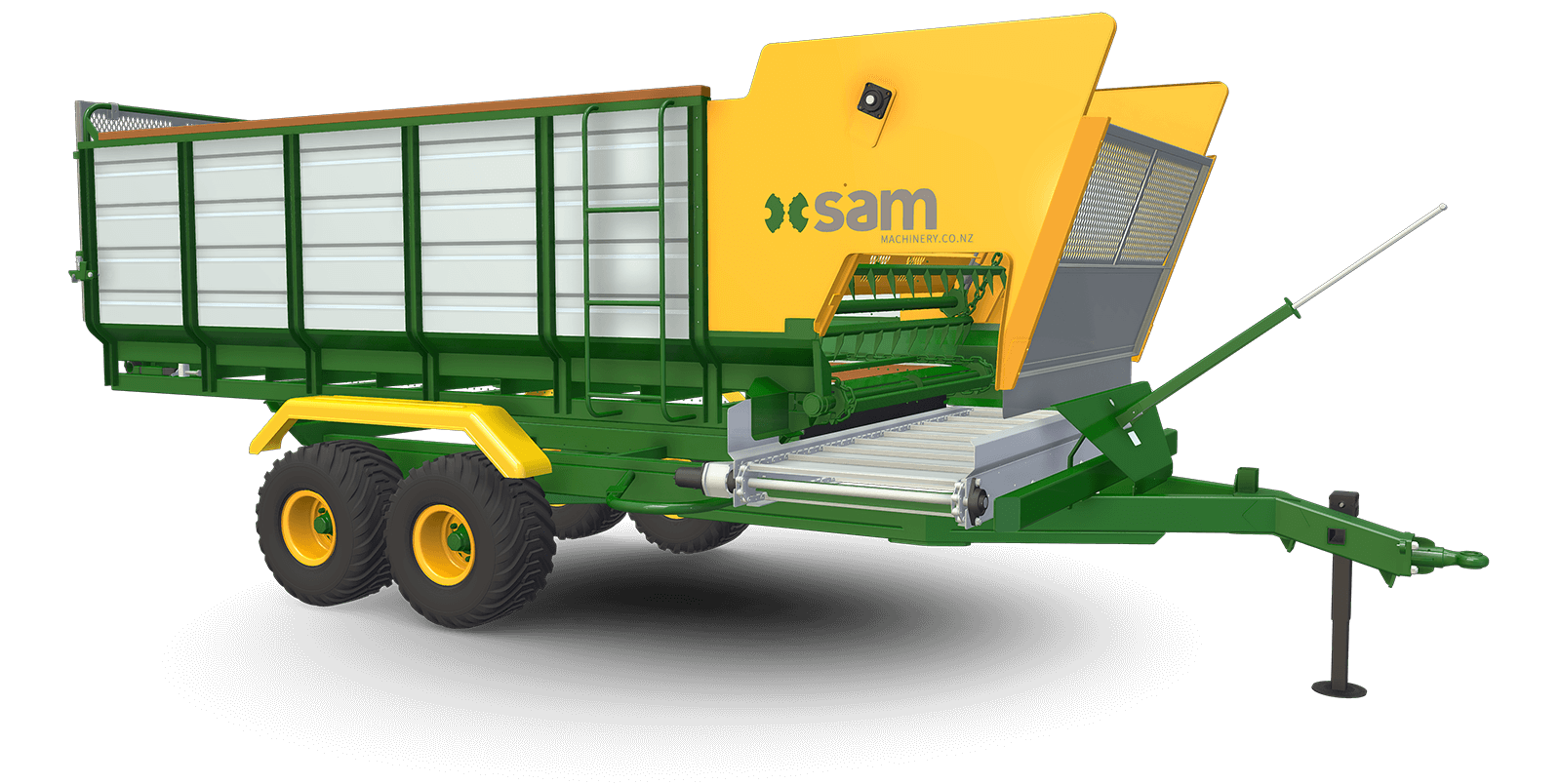

12 Cube

12 Cube
More stainless. Reliability plus.


Reliability is key with every SAM Feed Wagon constructed with plenty of stainless and longevity in mind. Complexities are designed out, to make sure they are simple for you to use and your team to maintain throughout the years.

Each wagon gives a consistent stream of feed with solid throw. They cope well with a wide variety of feed such as maize, grass silage, Palm Kernel and green feed.

Six, nine, ten, twelve and fifteen cube models make up the range.

Every machine comes with a stainless steel chain side-feed or a simple centre-feed delivery system (for paddock feeding).

If even more accuracy is what you are after, you can add smart tech with the addition of weigh scales. These give the weight of feed in your bin at any given time.

Smart features

  • Chain side feed with stainless chain
    Chain side feed with stainless chain

    Heavy-duty stainless chain side feed is now standard on all Wagons. They are super strong with no tracking issues and easy maintenance. The tough conveyor bars and set up give a strong directional flow across a variety of feed types.

  • Fully stainless side panels and fronts
    Fully stainless side panels and fronts

    Strong stainless front panel and sides mean your machine is built to last. Front panel holes can be customised to your requirements, helpful if you are feeding out fine product.

  • The paintwork is long lasting
    The paintwork is long lasting

    The special process for chassis paintwork includes shot blasting, priming and two-pot paint finish.

  • High tensile chain
    High tensile chain

    Super strong thirteen millimetre calibrated snig chains are used

  • Strong impact resistant deck
    Strong impact resistant deck

    Trans Tex ply timber is well-known for its flexibility and strength. It is used extensively across the trucking industry

  • Bluetooth 1 features002 Load cells FW 1
    Smart weighing

    Load weigh scales can be fitted retrospectively. They give smart, easy to use electronic weighing of feed in your bin. You can view weights via your Iconix FX15 screen and also on an App via Bluetooth.

  • Easy greasing
    Easy greasing

    Remote greasing is included on all twelve and fifteen cube models. All grease points are raised together so they are easy to reach, saving you time and effort with your maintenance.

  • Teaser bars designed for best grab and lift
    Teaser bars designed for best grab and lift

    Each tooth is separately welded to last long term and are designed for best grab and grip of feed. Superb for silage.

  • Higher chassis

    SAM Feed Wagons have been made with ample of clearance so they don't bottom-out in paddocks with bumpy contours.

  • Heavy-duty swivel on tow eye
    Heavy-duty swivel on tow eye

    All twelve and fifteen cube SAM Feed Wagons include a swivel coupling. These are excellent when your terrain is varied.

Optional extras

  • Smart weighing
  • Lights for on-road use
  • Hydraulic side shift extension
  • Brakes on front hubs
  • Skid for use with Auto Hitch
  • Larger tyres
features002
Smart weighing

The smart load cell system provides a clear measure of the amount of material in the hopper. An Iconix FX15 screen is included with all SAM Feed Wagons with scales.

An easy measure of the weight of material spread, divided by the paddock area gives an accurate kilogram per hectare spread rate.

An app for viewing measurements on your mobile is also provided. This is Android only.

Lights for on-road use

You will need LED lights and flags if you are travelling on the road. The flexible plastic mounting boards are tough and hardy if knocked.

The LED lights plug straight into your power source. They are fully waterproof.

Hydraulic side shift extension

Your side feed can be extended by 250mm for a wider reach. This set up is handy for feeding into troughs. The hydraulics are controlled from your tractor cab.

Brakes 1
Brakes on front hubs

All tandem axle SAM's can have brakes fitted. They are positioned on the two front hubs.

Brakes are chosen for their longevity and have proven to be extremely reliable across the years.

Skid 1
Skid for use with Auto Hitch

If your Feed Wagon is going to be used with an Auto Hitch you'll need a skid added to the front of the machine.

Please let your sales person know so they can specify this at time of ordering. There is no additional charge for adding a skid.

Tyres 2
Larger tyres

Our tyres have been chosen for their toughness and durability. We only go for very high quality options.

Tyre specifications can be adapted for your particular situation and terrain. We are happy to talk through custom options.

Six, nine and ten cube SAM Feed Wagons come standard with 11.5x15.3 tyres. Or you can upgrade to bigger 400x15.5 tyres. Bigger tyres can be suitable for softer, wet terrain.

Twelve cubic metre Feed Wagons have these 400x15.5 tyres included as standard.

The fifteen cube models have 500x17 tyres as standard.

features002
Brakes 1
Skid 1
Tyres 2

Specifications

  • Axle Tandem seventy millimetre
  • Axle capacity 12,000 kilograms
  • Tyres 400/60 x 15.5 14-ply
  • Length (overall) 7.3 metres
  • Width (overall) 2.5 metres
  • Bin width (internal) 2.0 metres
  • Bin height (Internal) 1.24 metres
  • Capacity 12 cubic metres
  • Load weight (grass silage) 8 tonnes
  • Load height 2.35 metres

Need help fast?

Contact your local dealer or call SAM for technical help and support.

Quality guaranteed

SAM makes quality machines and stands by them. Every Feed Wagon goes through extensive quality and accuracy testing. All come with a comprehensive warranty.
